Hybrid Propagation Modeling for CBRS: Clearer Service Area Visualizations

In CBRS networks, the ability to accurately render propagated energy on maps is essential. Operators and enterprises need intuitive visualizations that reveal true coverage strengths and gaps, so they can confidently plan deployments, optimize configurations, and deliver reliable service.

Traditional CBRS planning relies on the Irregular Terrain Model (ITM), the terrestrial model mandated by Spectrum Access Systems (SAS) for regulatory compliance and incumbent protection. ITM provides fast, stable wide-area predictions using only a simple 1D profile of ground elevation along the propagation path. These predictions remain consistent across seasons and weather, making ITM highly practical for broad geographic coverage.

Yet ITM has inherent limitations. Because it works from a one-dimensional terrain slice, it cannot fully account for horizontal geometry such as building edges, vegetation clusters, or urban clutter. This often results in smoothed or incomplete pictures of local signal behavior, especially in dense environments.

To deliver more realistic service area maps, we use a hybrid multi-scale approach. It applies the right propagation method at the right distance: physics-based ray tracing for detailed near-field modeling and the proven terrestrial ITM for reliable wide-area context.

The Insight Behind the Hybrid Approach

Physics-based ray tracing excels because it models the full three-dimensional environment. It captures reflections, diffractions, scattering, and multipath effects created by actual buildings, trees, and clutter, details impossible to represent with ITM’s 1D elevation profile.

However, ray tracing depends on a high-fidelity digital twin of the real world: a detailed 3D scene including terrain, structures, and vegetation. Constructing and processing such scenes at scale becomes computationally demanding, which practically limits effective ray-tracing coverage to the near-field, typically out to about the first couple of kilometers.

By contrast, ITM requires minimal input data, just the 1D terrain profile along each path. This simplicity allows it to generate dependable predictions over much larger distances, tens to 100 km, with comparable computational effort.

Our hybrid method leverages this natural complementarity. We combine near-field precision from physics-based ray tracing (powered by NVIDIA’s Sionna¹) with wide-area stability from ITM. The result is coverage heatmaps that are both locally accurate and geographically scalable, while staying fully compatible with SAS requirements, where ITM serves as the regulatory baseline.

¹ We’ll explore Sionna and its GPU-accelerated ray-tracing capabilities in more detail in a future post.

Why Scale-Specific Modeling Matters in CBRS

Different CBRS deployments have different visualization priorities:

• Enterprise applications (airports, factories, campuses, and industrial sites) benefit most from near-field accuracy. High-performance, high-bandwidth services in these environments demand precise mapping of coverage in urban canyons, cluttered suburbs, and complex indoor-to-outdoor transitions. Ray tracing reveals sharp shadowing, realistic signal gradients, and hidden gaps or strengths that directly affect service quality and user experience.
• Fixed wireless access (suburban and rural broadband, energy sector monitoring, logistics corridors) relies more on wide-area reliability. Here, operators need consistent, stable predictions across large regions for efficient site selection and interference management, predictions that hold steady regardless of seasonal changes or weather.

The hybrid model addresses both needs without compromise. It gives enterprise users the detailed local insights required for demanding applications, while providing fixed wireless operators with the broad, dependable view essential for large-scale planning.

Visualizing the Difference

When rendered on maps, the hybrid approach produces noticeably clearer service area visualizations. Near-field ray tracing adds crisp detail including sharper building shadows, more realistic signal behavior in cluttered areas, and better-defined coverage boundaries exactly where local effects dominate. The ITM wide-area layer supplies reliable context across broader regions.

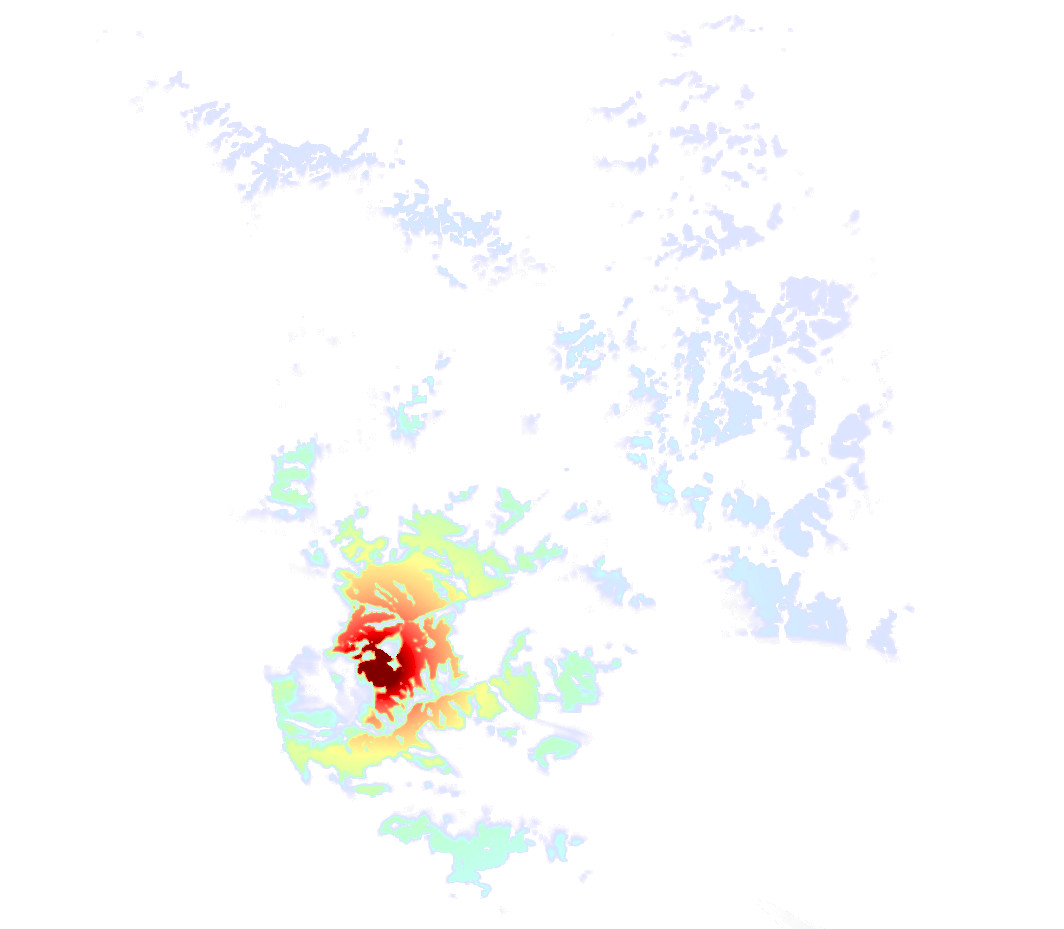

(See the accompanying example rendered visual, which illustrates how the combined modeling highlights coverage strengths and gaps more effectively than ITM alone.)

These maps enable engineers and operators to quickly identify serviceable areas, spot weaknesses, adjust parameters, and make faster, better-informed deployment decisions.

Benefits for CBRS Deployments

This multi-scale modeling delivers tangible advantages:

• More accurate identification of coverage strengths and gaps, particularly for high-bandwidth services in challenging near-field environments.
• Improved site selection and equipment configuration tailored to specific use cases, whether enterprise or fixed wireless.
• Better interference predictions that support denser, more efficient General Authorized Access (GAA) deployments while maintaining full SAS compliance.
• Faster planning cycles through intuitive, realistic propagated-energy visualizations.

By matching the propagation method to the scale where it performs best, we move beyond one-size-fits-all modeling toward practical, context-aware tools that help you truly see and understand your CBRS network performance.

Looking Ahead

This hybrid approach represents a practical advancement in propagation modeling for shared-spectrum bands like CBRS. Future posts will share real-world validation against drive tests, deployment experiences, and additional enhancements.
